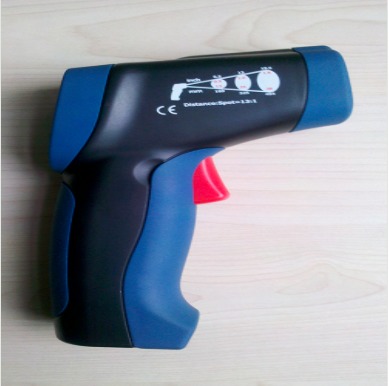

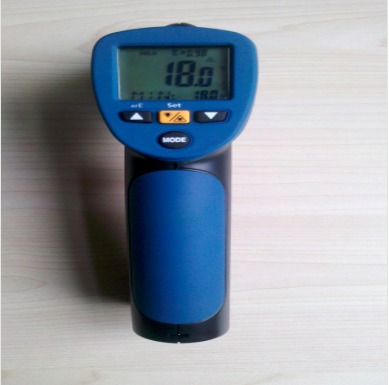

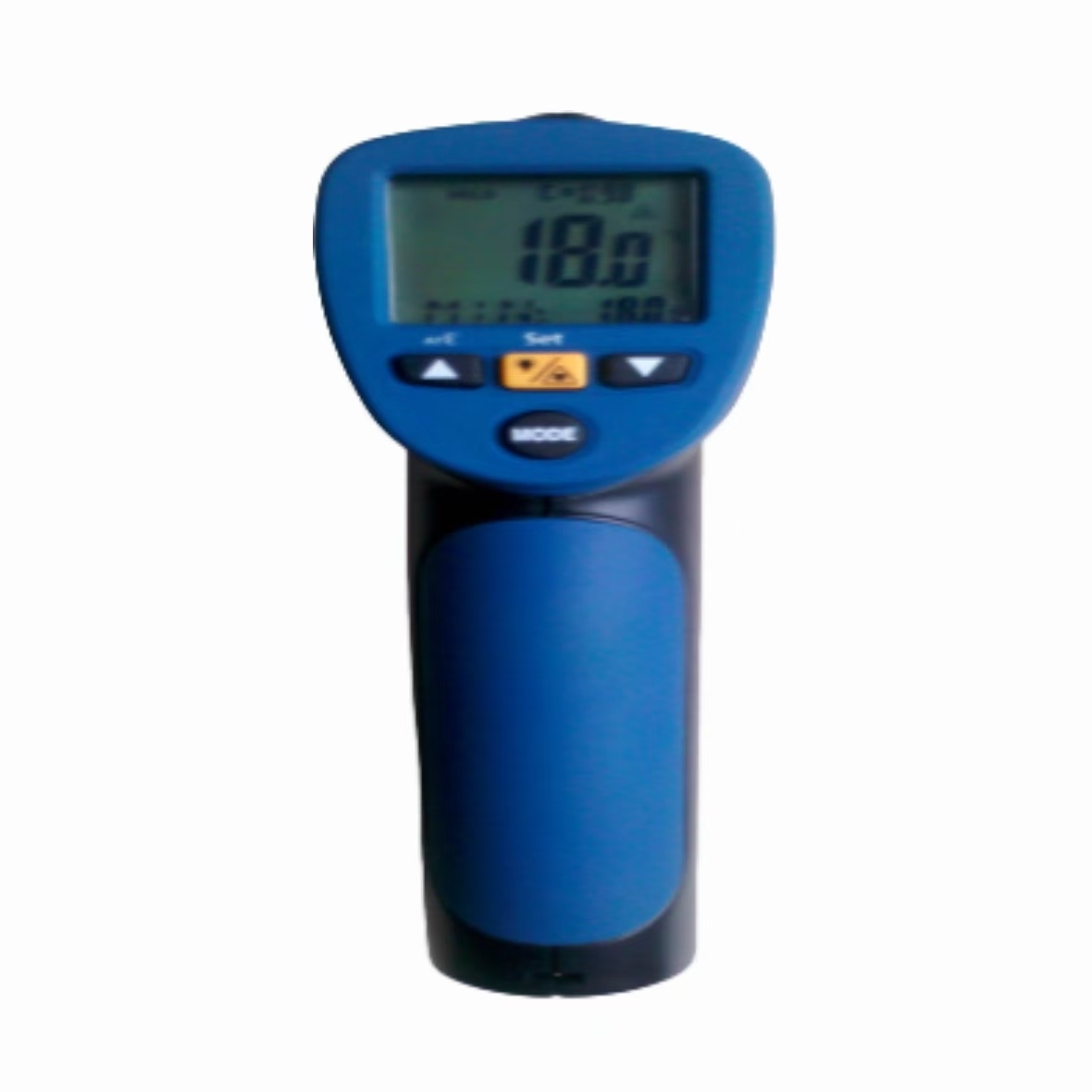

Mine-use intrinsically safe infrared thermometer

পণ্যের বর্ণনা

1,Overview

CWH800(A) Mine Intrinsically Safe Infrared Thermometer - This product is used for measuring the surface temperature of equipment in coal mines. It is a professional handheld non-contact infrared thermometer with a solid design, easy to use, high measurement accuracy, and a wide temperature measurement range. It is used for measurement and maintenance in coal mines. This handheld non-contact infrared thermometer can be used to measure the surface temperature of objects that are not suitable for traditional contact measurement methods (such as moving objects, electrified surfaces, and difficult-to-reach objects, etc.).

2,Features

Measurable maximum temperature: 800ºC

It is displayed numerically, with a resolution no less than 0.1ºC, and can indicate the positive or negative value of the displayed reading
It can perform high-temperature alarm, low-temperature alarm, and emissivity parameter setting
It can measure the maximum and minimum temperatures and store the data
It can retain at least 3 measurement points of data and can re-adjust or clear the data points
It has laser aiming, with a light source display, automatic reading lock and automatic shutdown function
It can operate the laser and background light normally
Measurement mode: point temperature measurement
ºC/ºF conversion buttons and trigger lock
It has power voltage display, under-voltage indication, and automatic shutdown function when under-voltage
Explosion-proof power supply: one 9V battery

3,Functions
1) Basic accuracy: Take the larger value between ±1.5% or 1.5˚C.
2) Temperature range: 0ºC to 300ºC, maximum temperature range: -25°C to 380°C, -13°F to 716°F.
3) Emission rate: 4 preset value levels, along with customizable adjustment within the range of 0.1 to 0.99.
4) Distance ratio coefficient: (D:S) 24:1
5) Measurement resolution: 0.1˚C / ˚F
6) Response time: 150ms
7) Wavelength range: 8 μm - 14 μm
8) Laser indicator: Dual laser beams, for locking in the temperature measurement area
9) Thermal imaging detector: Imported micro-thermal radiation sensor focal plane array (FPA)
10) Shutter: Integrated automatic shutter
11) Image resolution: (Width x Height) 4800 pixels (80 x 60)
12) Field of view: (height x width) 50° x 38.6°
13) Thermal imaging sensitivity: 150mk
14) Frame rate: 9Hz
15) Palette: 2 colors (grayish white, iron red)
16) Image format for saving: Bitmap (BMP) image with temperature and emissivity information
17) Display type: 2.0" TFT LCD
18) Display resolution (width x height): 38720 pixels (176x220), Screen size: 80*60mm
19) Automatic shutdown function: Available (can be set via menu - 1 point, 2 points, 5 points, 10 points, OFF)
20) Battery continuous usage time: General use: 5 working days (8 hours per working day); Continuous use: 8 hours
21) Memory card: 8GB minSD card
22) Working temperature: -10˚C to 45˚C, 14˚F to 113˚F
23) Anti-drop: The test is designed to a height of 2 meters (6.5 feet)
24) Tripod base: 1/4" at the bottom of the handle
